Forming Taps, Forming taps with accurate chamfer, free from pitch/angle errors

• IT-TF-T

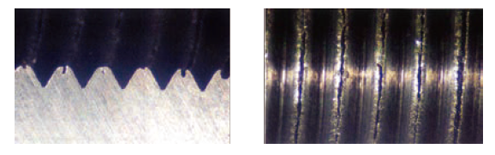

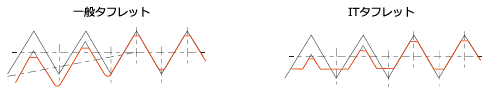

• IT TAFLET is a forming tap which produces no burrs since chamfer is created by, no tilting at the root of the tap, continuously changing the width of the root.
• This enables to manufacture superfine pointed miniature thread S0.5x0.125, hither to considered impossible.

• IT-TF-C

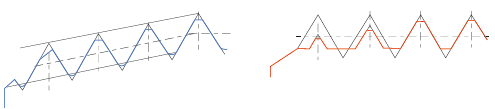

・Free from pitch/angle errors
・Flat roots featured on chamfered threads
・Designed with shallow root depth

Forming taps which can create the equal thread form as cutting taps with zero degree of concentricity on threads and internal diameter.

• SL-TF
• Seamless TAFLET eliminates seams in the internal thread during reverse rotation with few chips, improves concentricity of the internal diameter.

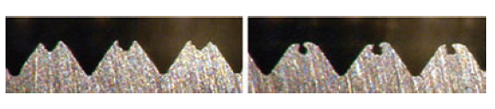

・Example of tapping by Seamless TAFLET

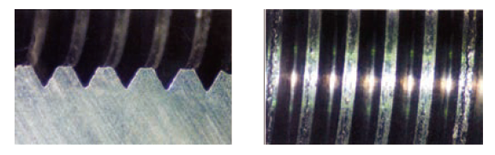

・Example of tapping by T TAFLET
