Endmills
DIJET
Multi-purpose solid carbide end mill
3-Flute Super One-cut End Mill Series
The multipurpose solid carbide end mill for advanced plunging performance.
DV-SOCS3

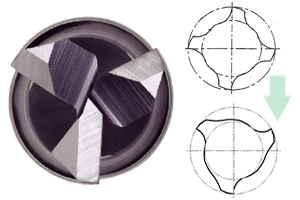

・Excellent chip evacuation by combination of unique flute geometry & 45° helix angle.
・Adopted new developed unique center cutting edge geometry.
・Improved wear resistance by DV coating.
Adopted same flute geometry as DZ-SOCS4
●Dimensions list
Model number | Dia. | Length of Cut |
Overall Length |
Shank |
DV-SOCS3030 | 3 | 8 | 60 | 6 |
DV-SOCS3040 | 4 | 11 | 60 | 6 |
DV-SOCS3050 | 5 | 13 | 60 | 6 |
DV-SOCS3060 | 6 | 13 | 60 | 6 |
DV-SOCS3080 | 8 | 19 | 75 | 8 |
DV-SOCS3100 | 10 | 22 | 80 | 10 |
DV-SOCS3120 | 12 | 26 | 100 | 12 |
