Endmills
OSG
End Mill for Counterboring Series

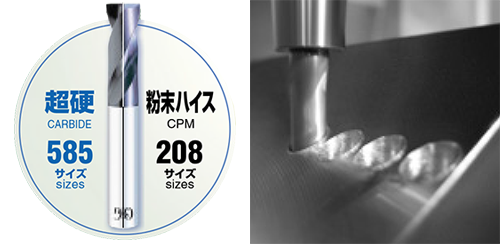

Its ability is brought into full play when machining slopes!!
FX-ZDS
FX Coated 2Flutes Short for Counterboring
・Tool Material:Micro Grain Carbide
・Surface Treatment:FX Coating
・Helix Angle:About 20°
・Tolerance for Outer Diameter:0〜−0.02mm
Size:φ0.5〜φ20.0
FX-LS-ZDS
FX Coated 2Flutes Short with Long Shank for Counterboring
・Tool Material:Micro Grain Carbide
・Surface Treatment:FX Coating
・Helix Angle:About 20°
・Tolerance for Outer Diameter:0〜−0.02mm
Size:φ3.0〜φ20.0
FX-ZDN
FX Coated 2Flutes Medium for Counterboring
・Tool Material:Micro Grain Carbide
・Surface Treatment:FX Coating
・Helix Angle:About 20°
・Tolerance for Outer Diameter:0〜−0.02mm
Size:φ3.0〜φ20.0
FX-HO-ZDN
FX Coated 2Flutes Medium for Counterboring with Internal Coolant Supply
・Tool Material:Micro Grain Carbide
・Surface Treatment:FX Coating
・Helix Angle:約20°〜30°
・Tolerance for Outer Diameter:0〜−0.02mm
Size:φ3.0〜φ12.0
CA-ZDS
2Flutes Short for Counterboring (for Copper ・ Aluminum Alloy)
・Tool Material:Micro Grain Carbide
・Helix Angle:About 20°
・Tolerance for Outer Diameter:0〜−0.02mm
Size:φ0.5〜φ12.0
DIA-ZDS
DIA Coated 2Flutes Short for Counterboring
・Tool Material:Micro Grain Carbide
・Surface Treatment:DIA Coating
・Helix Angle:約20°
・Tolerance for Outer Diameter:0〜−0.02mm
Size:φ0.5〜φ3.0
VP-ZDS
V Coated CPM 2Flutes Short for Counterboring
・Tool Material:Powder Metallurgy HSS(CPM)
・Surface Treatment:V Coating
・Helix Angle:About 25°
・Tolerance for Outer Diameter:0〜−0.03mm
Size:φ3.0〜φ32.0
VP-LS-ZDS
V Coated CPM 2Flutes Short With Long Shank for Counterboring
・Tool Material:Powder Metallurgy HSS(CPM)
・Surface Treatment:V Coating
・Helix Angle:About 25°
・Tolerance for Outer Diameter:0〜−0.03mm
Size:φ6.0〜φ20.0
