Endmills
NACHI

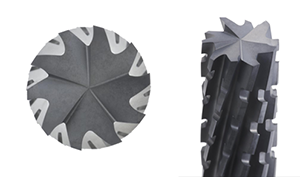

Crystal Diamond Coated Fiber Mill
DCECFF
Excellent for milling the sides of CFRP materials.
●Tool Materials : Carbide
●Surface Treatment : DIA
●Helix Angle : 15°
●Tolerance : 0〜−0.05mm

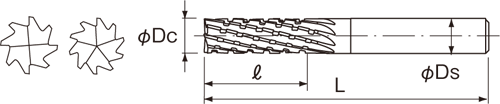

CODE | Diameter (Dc) |
Length of Cut (ℓ) |
Overall Length (L) |
Shank (Ds) |
No. of Flute (N) |
DCECFF0300 | 3 | 10 |
50 |
4 |
6 |
DCECFF0400 | 4 | 15 |
|||
DCECFF0500 | 5 | 18 | 6 | 8 | |
DCECFF0600 | 6 | ||||
DCECFF0700 | 7 | 25 | 70 | 8 | |
DCECFF0800 | 8 | ||||
DCECFF1000 | 10 | 30 | 80 | 10 | 10 |
DCECFF1200 | 12 | 35 | 90 | 12 | |
DCECFF1600 | 16 | 100 | 16 | 14 | |
DCECFF1800 | 18 | 40 | 105 | ||
DCECFF2000 | 20 | 45 | 110 | 20 | 16 |
