NS TOOL：MUGEN-COATING Premium Power Radius End Mill

HOME > Product information > End Mills > NS TOOL：MSXH440R

Endmills

NS TOOL

MUGEN Premium Power Radius End Mill

High-efficiency milling on (SUS, Ti, etc) tough materials

MSXH440R
・Flute：4

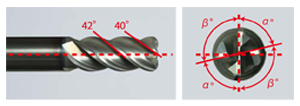

・Helix Angle：40°/42°
・Surface Treatment：MUGEN-COATING Premium
・Tool Material：Micro Grain Carbide

・Improved designs of unequal helix angle and flute spacing.
　Suppression from chattering to realize stable milling progression.
・Original spiral design at corner radius flutes improves cutting edge performance.
　Designed for high rigidity to suppress corner radius flute breakage even on rough milling stresses.
・Adopted Mugen Coating Premium
　Suppression from chattering to realize stable milling progression.
　Improved heat resistance and cutting edge strength to protect from milling heat influence.
