NS TOOL：CBN Super Spiral Ball End Mill | TOKYO YAMAKATSU CORPORATION

HOME > Product information > End Mills > NS TOOL：SSPB220

Endmills

NS TOOL

SSPB

CBN Super Spiral Ball End Mill

To Higher-grade Machined Surface Realized the New Level of Quality and Glossy Surface!

・Number of Flutes：2
・Helix Angle：20°
・Tool Material：Cubic Boron Nitride

●The Best Spiral Ball Shape for Finishing

Adopted spiral ball shape to improve sharpness of cutting edge.

●NS Original Cutting Edge Shape

Adopted cutting edge shape to improve the chipping resistance of cutting edge.

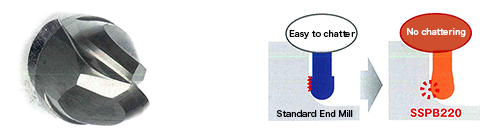

●Taper Back Shape on Peripheral Cutting Edge

When peripheral cutting edge makes contact with cutting surface, vibration occurs by an increase in cutting resistance and it affects tool life and cutting surface quality.
The influence can be reduced by adoption of the strong back taper shape.
