Endmills
HITACHI TOOL
Expanded lineup
Epoch Deep Evolution
Epoch Deep Square Evolution
Flute shape with high flute tip strength and high cutting performance provides improved stability.
Epoch Deep Ball Evolution
High-strength flute shape with high chip removal characteristics.
Stronger R flute helix angle improves cutting performance.

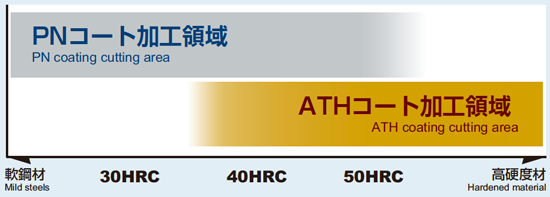

PN Coating
●New coating with excellent adhesion and wear resistance
・A heat-resistant coating material with excellent adhesion to the tool substrate was achieved by optimizing the Al content.
・Exhibits high hardness (3000HV) with good wear resistance due to combining of the AlCr coating layer with Si. (TiAlN: 2800HV)
・Exhibits excellent cutting life for cutting materials such as plastic molds, etc. where material adhesion often occurs.
Provides the long life in cutting processing of materials starting with HPM-MAGIC and including prehardened steel, carbon steel, alloy steel, SUS, SKD61, SKD11, etc.
・By improving heat resistance, long life are possible for both wet cutting and dry cutting.
Note) This product obtains less electric conductivity. Therefore, Please caution of using electric transmitted measuring systems.
ATH Coating
●Improved heat-resistant coating
・The heat-resistant TH coating used previously has further evolved. A laminated structure is used to achieve both heat resistance and adhesion strength.
・Achieves even higher hardness (3800HV) than before! Exhibits good abrasion resistance. (Hardness of conventional high-hardness membrane: 3600HV)
・Achieves long life and higher stability for cutting high-hardness materials of 50HRC or higher such as plastic molds, diecast shapes, etc.
・Increased heat resistance enables longer life for either wet cutting or dry cutting.
